Photon_Bike Bicycle Torque Sensor

The Photon_Bike sensor is a dynamic torque sensor developed for the field of power-assisted bicycles. It can be quickly customized according to the needs of different models and the structure of the five-way tube. It can record the pedaling torque and cadence at the same time. The product has high accuracy and no output in a static state., Can fully meet the requirements of cyclists for power-assisted pedaling.

Classification:

Force and torque sensor

Dynamic torque transducer

Key words:

Photon_Bike Bicycle Torque Sensor

Product Consulting
  • Product Description
  • Product features
  • Technical parameters of the product
  • Structure diagram of the product
  • Sample code

  • The Photon_Bike sensor is a dynamic torque sensor developed for the field of power-assisted bicycles. It can be quickly customized according to the needs of different models and the structure of the five-way tube. It can record the pedaling torque and cadence at the same time. The product has high accuracy and no output in a static state., Can fully meet the requirements of cyclists for power-assisted pedaling.

  • 1. Dynamic torque sensor developed for power-assisted bicycle field
    2. According to the needs of different models and five-way pipe structure for rapid customization

  • pic

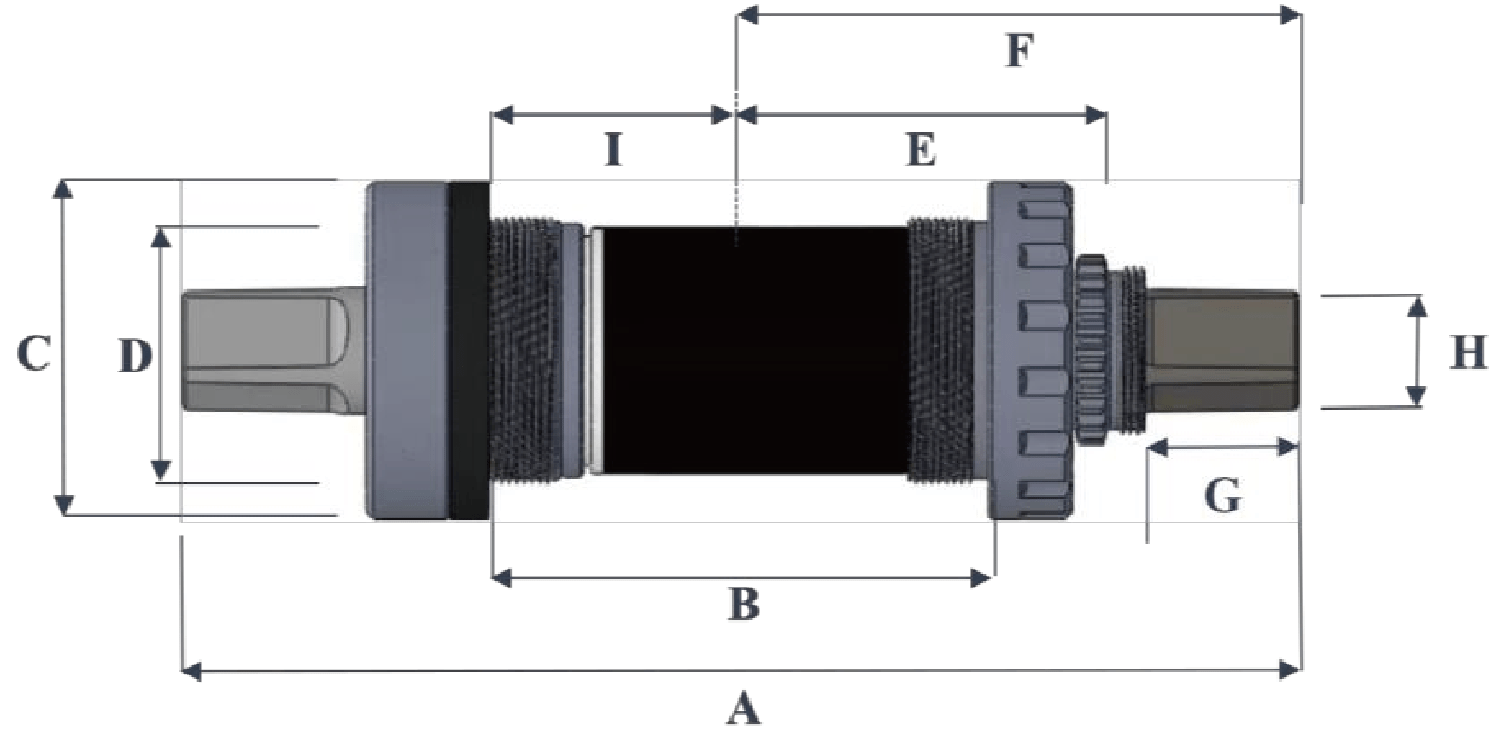

    Mechanical structure parameters Core parameters
    A(mm) 146 sensing object moment velocity
    B(mm) 65 Number of pulse signals (r) 32
    C(mm) 2-Φ44 Input voltage (V) 4.5~5.5
    D(mm) 2-BC1.37-24T Output voltage (V) 0~3.3
    E(mm) 48.5 Input power (w) <0.4w
    F(mm) 75.5 Measurement range (N.m) 1~80
    G(mm) 2-19 Resolution (mV/N · m) 35
    H(mm) 2-M8*P1*25 Measurement Type Dynamic
    I(mm) 31.5 Weight (g) 243
    Bowl group dental gauge BS (C) 1.375*24 Line length Customize on demand
    Axis JIS Waterproof IP X5
    Operating temperature (°C) -20~65 Storage temperature (°C) -40~80
