Photon_micro Series Medical Force Sensor

The Photon_micro series medical force sensor is a miniature six-dimensional force sensor developed for medical scenarios and is known to be the smallest medical force sensor in the world. The sensor has a diameter of only 6-8mm and can be integrated into various endoscopic systems and laparoscopic surgical instruments. With a visual display system, it can assist doctors in the process of diagnosis and treatment and monitor the contact state between the instrument and the human body cavity.

Classification:

Force and torque sensor

Static Force/Torque Transducer

Key words:

Photon_micro Series Medical Force Sensor

Product Consulting
  • Product Description
  • Product features
  • Technical parameters of the product

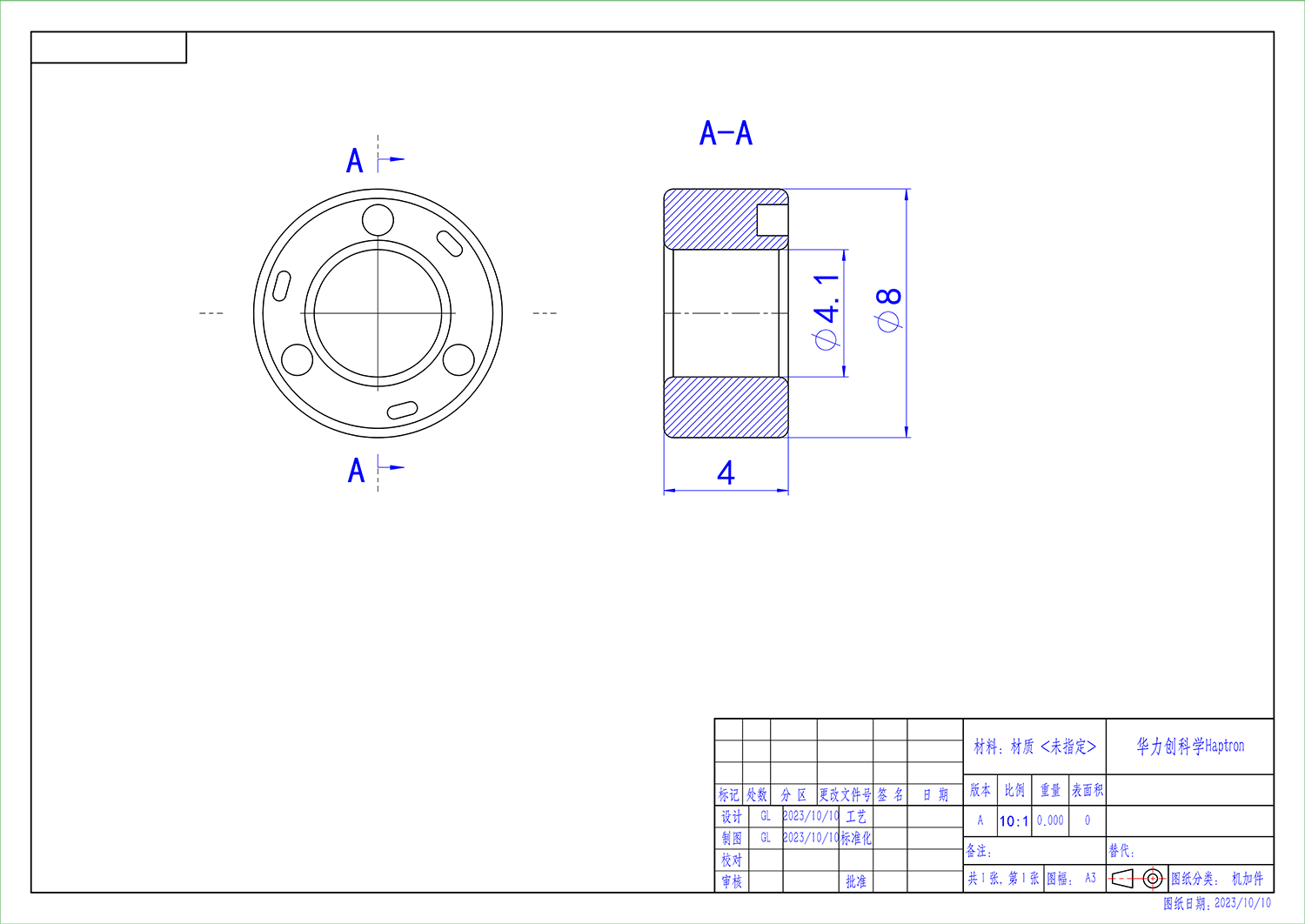

  • Structure diagram of the product
  • Sample code

  • The Photon_micro series medical force sensor is a miniature six-dimensional force sensor developed for medical scenarios and is known to be the smallest medical force sensor in the world. The sensor has a diameter of only 6-8mm and can be integrated into various endoscopic systems and laparoscopic surgical instruments. With a visual display system, it can assist doctors in the process of diagnosis and treatment and monitor the contact state between the instrument and the human body cavity.

  • 1. Miniature six-dimensional force sensor developed for medical scenarios
    2. Known the world's smallest medical force sensor
    3. The sensor diameter is only 6-8mm

  • Technical parameters/Technical Parameters
    Range Fz : 20N  Mx, My: 0.04Nm
    Error Fz, Mx, My: 2%
    Crosstalk 3%
    Anti-overload capacity 150%
    Protection level IP65



  • pic
