PhotonR80 Series Six-Dimensional Force Transducer

The PhotonR80 sensor series is a six-dimensional force sensor developed for collaborative robots with a load of 3~20kg. The series of sensors can be adapted to the vast majority of collaborative robots and some small industrial robots on the market. The series of sensors are easy to install, stable and reliable, and can meet the human sense sensing needs of collaborative robots in one stop.

Classification:

Force and torque sensor

Static Force/Torque Transducer

Key words:

PhotonR80 Series Six-Dimensional Force Transducer

Product Consulting
  • Product Description
  • Product features
  • Technical parameters of the product

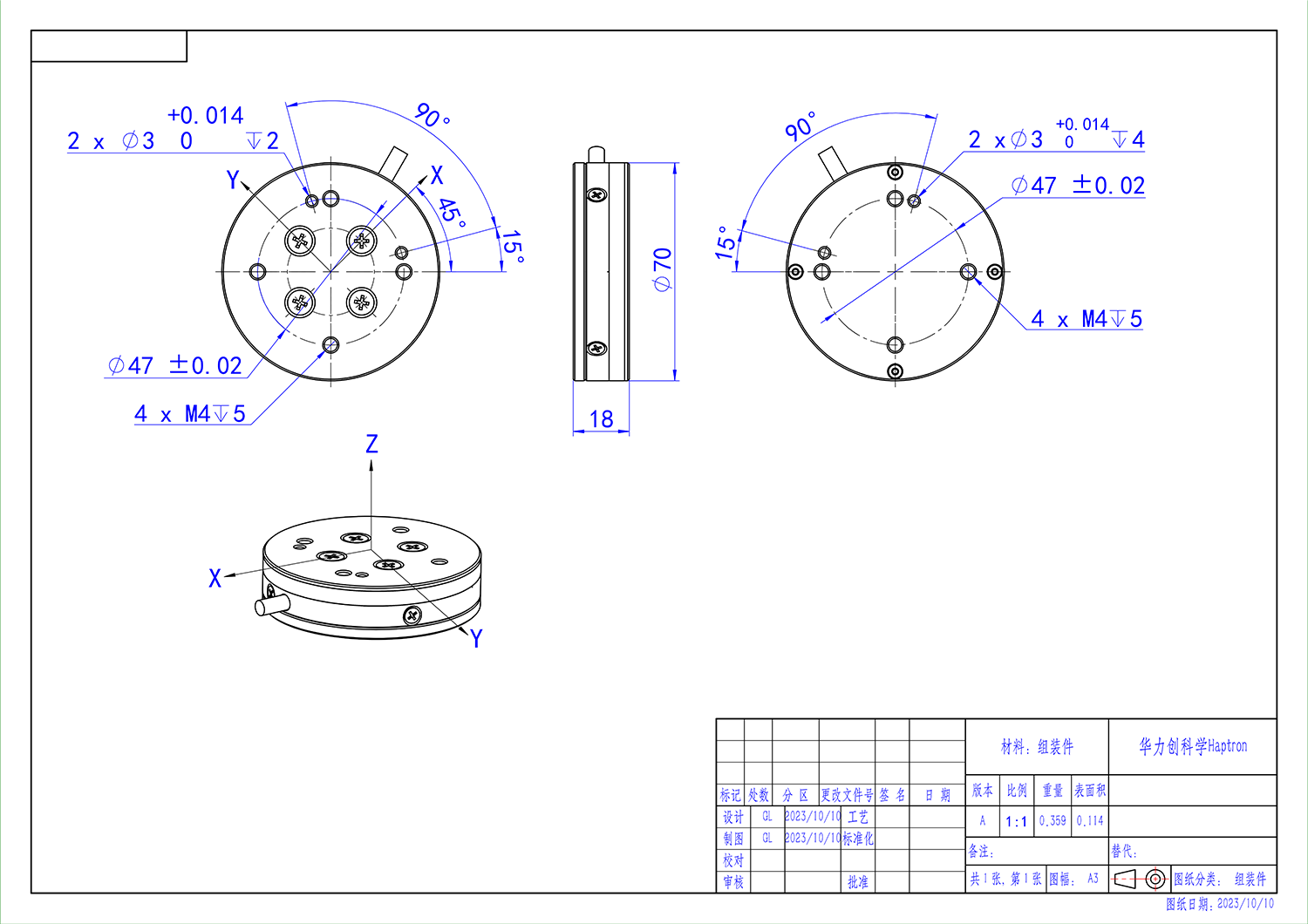

  • Structure diagram of the product
  • Sample code

  • The PhotonR80 sensor series is a six-dimensional force sensor developed for collaborative robots with a load of 3~20kg. The series of sensors can be adapted to the vast majority of collaborative robots and some small industrial robots on the market. The series of sensors are easy to install, stable and reliable, and can meet the human sense sensing needs of collaborative robots in one stop.

  • 1. A six-dimensional force sensor developed for a cooperative robot with a load of 3~20kg
    2. It can be adapted to the vast majority of collaborative robots and some small industrial robots on the market.
    3. Easy installation, stable and reliable

  • Technical parameters/Technical Parameters
    Dimensions Diameter (80mm)/Thickness (31.5mm)
    Fx/Fy 100N/200N/500N
    FZ 200NJ 400N/1000N
    Mx/My/Mz 10Nm /20Nm/30Nm
    Accuracy ≤ 0.5% F S
    temperature drift 01%F. S / 10°C
    Zero drift 01%F. s/30min
    compensation temperature -10°C-50C
    Working temperature -20C-80C
    Weight ≤ 400g
    Service life 10000h
    Protection level IP64 /IP65 /IP66 (third party test report)
    Resolution ≤ 0.05% F.S
    Crosstalk ≤ 2.5% F.S
    Overload 300%F.S
    Power 9-36V
    Sampling frequency 1000Hz
    Communication mode RS485ICAN



  • pic
