PhotonR66 six-dimensional force sensor

The PhotonR66 sensor is the first six-dimensional force sensor independently developed by Haptron Scientific. The sensor integrates the signal processing circuit into the sensor, which is convenient for users to install and wire. Now it has been applied and verified in the fields of force control polishing, manufacturing automation, massage robot, scientific research and education.

Classification:

Force and torque sensor

Static Force/Torque Transducer

Key words:

PhotonR66 six-dimensional force sensor

Product Consulting
  • Product Description
  • Product features
  • Technical parameters of the product

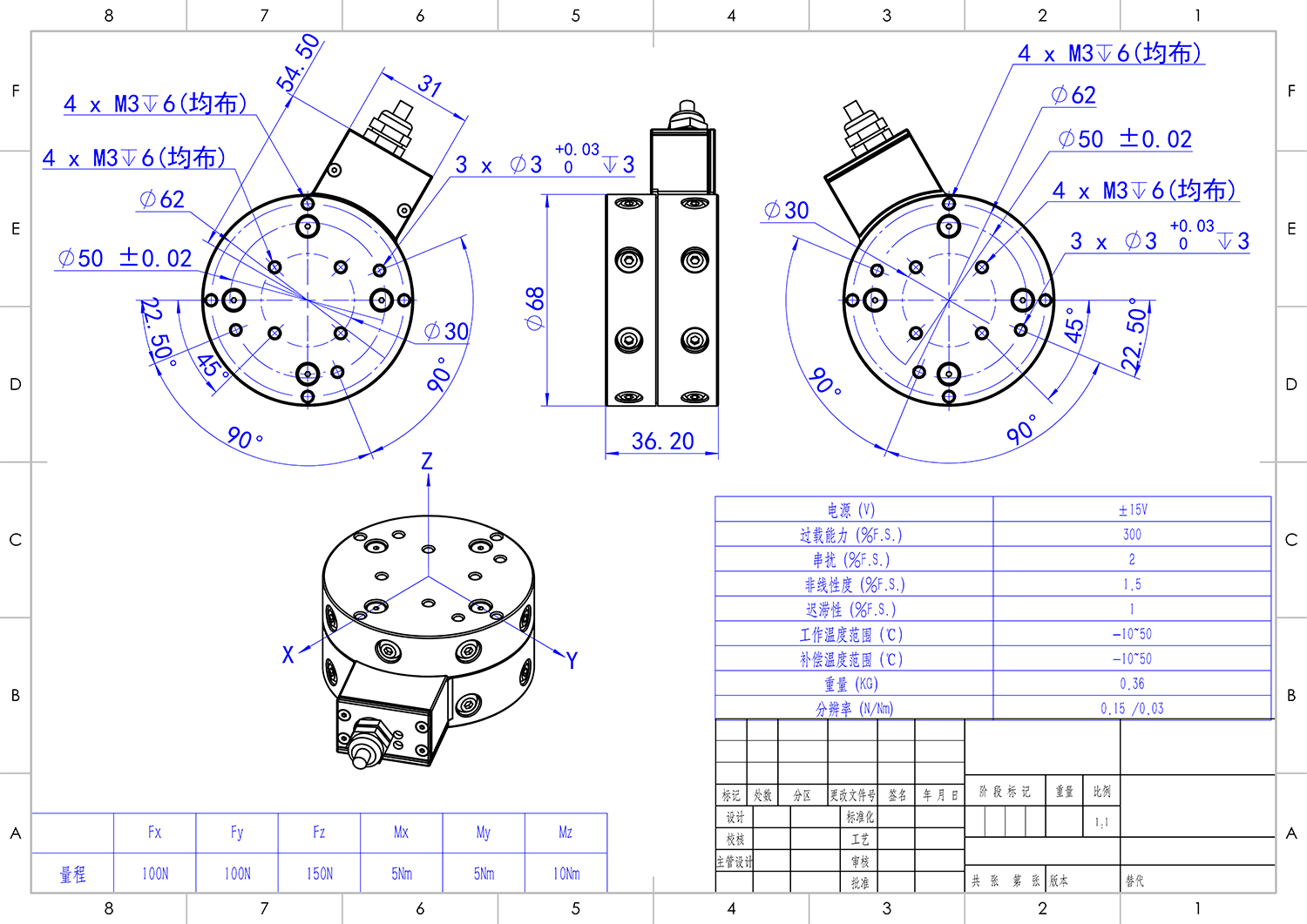

  • Structure diagram of the product
  • Sample code

  • The PhotonR66 sensor is the first six-dimensional force sensor independently developed by  Haptron Scientific. The sensor integrates the signal processing circuit into the sensor, which is convenient for users to install and wire. Now it has been applied and verified in the fields of force control polishing, manufacturing automation, massage robot, scientific research and education.

  • 1. The signal processing circuit is integrated in the sensor, which is convenient for users to install and wire
    2. It has been applied and verified in the fields of force control polishing, manufacturing automation, massage robot, scientific research and education, etc.

  • Technical parameters/Technical Parameters
    Accuracy 1%
    Anti-overload capacity 5~8 times of range
    Communication Ethernet，TCP/IP，RS-232 或 RS-485，UDP
    Supply voltage Optional 220V AC,380V AC or 12~30V DC
    System Resolution 16 bits
    Working temperature -10 °c ~ 50 °c
    Protection level IP6X (IP60,IP64,IP65 options per model)
    double range Each standard dual range, range can be switched to each other
    Range 1 Fx,y(150N) / Fz(250N) / Mx,y,z(7.5N.M)
    Range 2 Fx,y(75N) / Fz(125N) / Mx,y,z(3.75N.M)
    Dimensions Diameter (66mm) /Thickness (36.2mm)



  • pic
