PhotonOne_2 Series High Stiffness Multi-dimensional Force Transducer

PhotonOne_2 series sensors are high-stiffness three-dimensional/six-dimensional force sensors developed for precision machining. The shape and structure of the sensors are highly customizable, with high stiffness and stable signal transmission, which can monitor the precision machining process. At this stage, the products in this series have been applied to five-axis CNC machine tools, multi-axis polishing machines and other equipment, which can effectively improve the yield of various types of precision machining and reduce the risk of equipment failure.

Classification:

Force and torque sensor

Static Force/Torque Transducer

Key words:

PhotonOne_2 Series High Stiffness Multi-dimensional Force Transducer

Product Consulting
  • Product Description
  • Product features
  • Technical parameters of the product

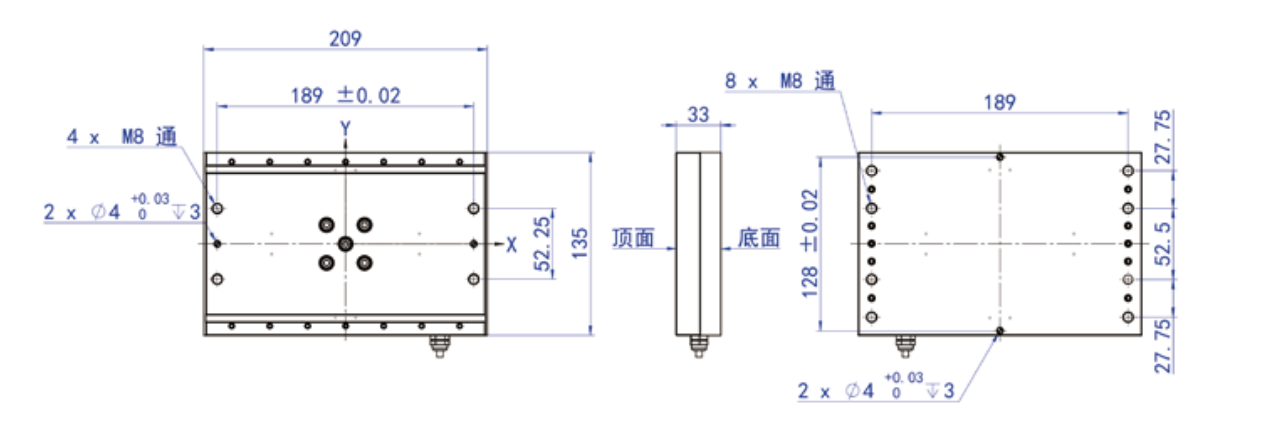

  • Structure diagram of the product
  • Sample code

  • PhotonOne_2 series sensors are high-stiffness three-dimensional/six-dimensional force sensors developed for precision machining. The shape and structure of the sensors are highly customizable, with high stiffness and stable signal transmission, which can monitor the precision machining process. At this stage, the products in this series have been applied to five-axis CNC machine tools, multi-axis polishing machines and other equipment, which can effectively improve the yield of various types of precision machining and reduce the risk of equipment failure.

  • 1. High stiffness three-dimensional/six-dimensional force sensor developed for precision machining

    2. Sensor shape structure can be customized, high stiffness, stable signal transmission

  • Technical parameters/Technical Parameters
    Range Fx Fy± 500N
    Accuracy 0.3% F.S
    Anti-overload capacity 2 times the range
    Communication mode 0~10V analog voltage signal
    Supply voltage 24V DC voltage
    System Resolution 0.38%
    Stiffness The deformation of a workpiece with a length of about 400mm at the end is not more than 0.1mm when subjected to a 100N force on the x/y axis.
    Wiring length 8m high flexible shielded wire
    Communication frequency No Requirements
    Dimensions <209mm*135mm*33mm
