PhotonMini six-dimensional force sensor

PhotonMini sensor is a high-precision small six-dimensional force sensor developed for aerospace, academic research, high-precision testing and other scenarios, with small and compact structure, good accuracy and high resolution. It can meet the needs of various high-precision testing processes.

Classification:

Force and torque sensor

Static Force/Torque Transducer

Key words:

PhotonMini six-dimensional force sensor

Product Consulting
  • Product Description
  • Product features
  • Technical parameters of the product

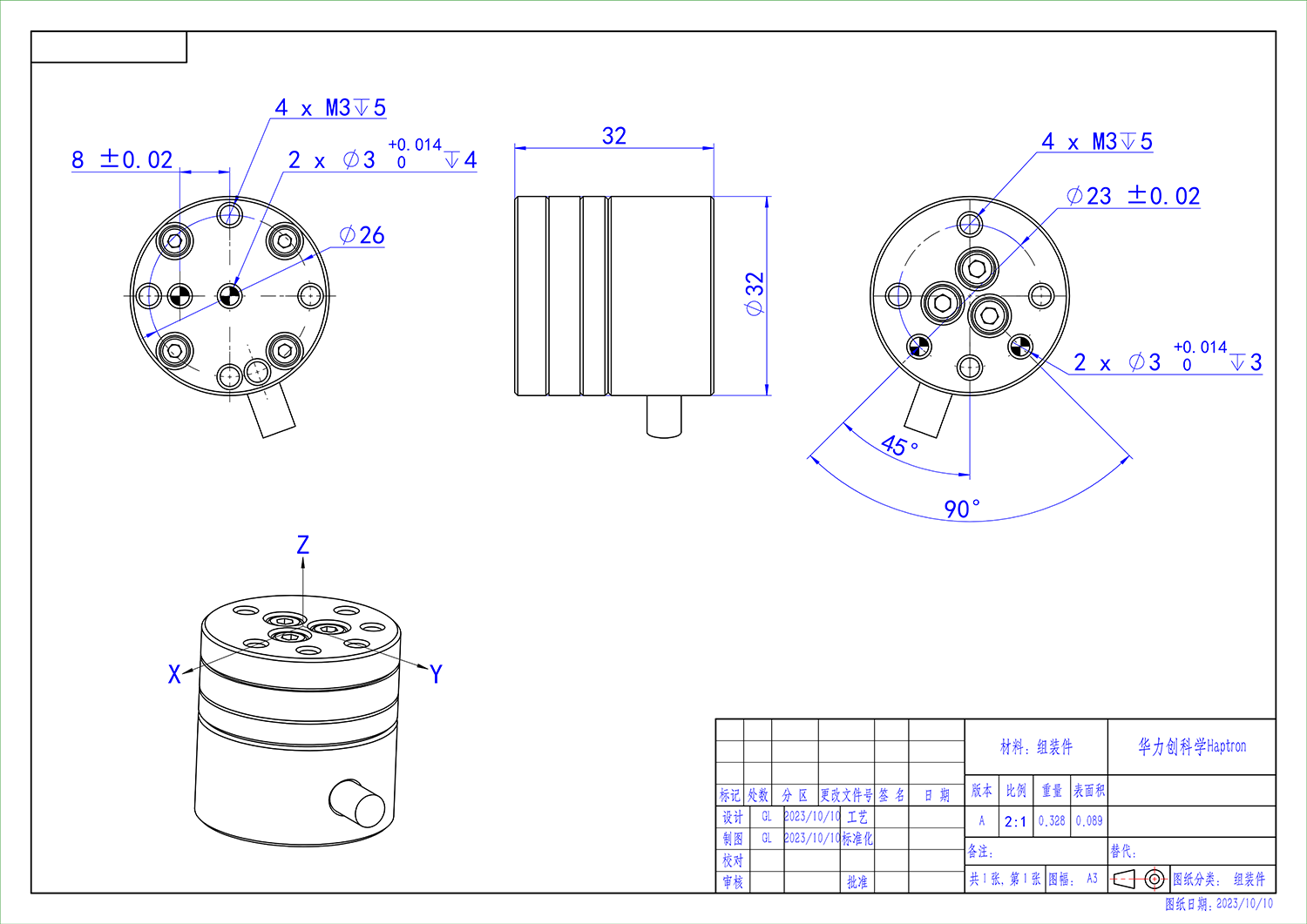

  • Structure diagram of the product
  • Sample code

  • PhotonMini sensor is a high-precision small six-dimensional force sensor developed for aerospace, academic research, high-precision testing and other scenarios, with small and compact structure, good accuracy and high resolution. It can meet the needs of various high-precision testing processes.

  • 1. High-precision small six-dimensional force sensor developed for aerospace, academic research, high-precision testing and other scenarios
    2. Small and compact structure, good precision, high resolution

  • Technical parameters/Technical Parameters
    Accuracy 1%
    Anti-overload capacity 5~8 times of range
    Communication Ethernet，TCP/IP，RS-232或 RS-485，UDP
    Supply voltage Optional 220VAC,380VAC or 12 ~ 30VDC
    System Resolution 16 bits
    Working temperature -10°C~50°C
    Protection level IP6X (IP60,IP64,IP65 options per model)
    double range Each standard dual range, range can be switched to each other
    Range 1 Fx,y(80N)/Fz(120N)/ Mx,y,Z(4N.M)
    Range 2 Fx,y(40N) / FZ(60N) / Mx,y,z(2N.M)
    Dimensions Diameter (32mm) /Thickness (32mm)



  • pic
